| Karnaugh Maps Part 1: Introduction |
| Karnaugh maps provide an alternative technique for representing Boolean functions. For example, consider the Karnaugh map for a 2-input AND gate (Figure 1). |

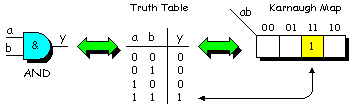

Figure 1: Karnaugh map for a 2-input AND gate. |
|
| The Karnaugh map comprises a box for every line in the truth table; the binary values above the boxes are those associated with the a and b inputs. Unlike a truth table, in which the input values typically follow a standard binary sequence (00, 01, 10, 11), the Karnaugh map's input values must be ordered such that the values for adjacent columns vary by only a single bit, for example, 00, 01, 11, and 10. This ordering is known as a gray code, and it is a key factor in the way in which Karnaugh maps work. (Gray codes are discussed in more detail in Appendix D of Bebop to the Boolean Boogie.) | ||
| The
y column in the truth table shows all
the 0 and 1 values associated with the gate's output. Similarly, all of
the output values could be entered into the Karnaugh map. However, for
reasons of clarity, it is common for only a single set of values to be
used, typically the 1s.
Similar maps can be constructed for 3-input and 4-input functions (Figure 2). In the case of a 4-input map, the values associated with the c and d inputs must also be ordered as a gray code; that is, ordered in such a way that the values for adjacent rows vary by only a single bit. |

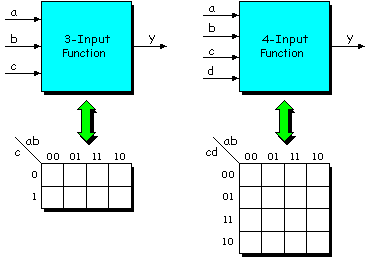

Figure 2: Karnaugh maps for 3-input and 4-input functions. |
 |
 |
|
|
|
